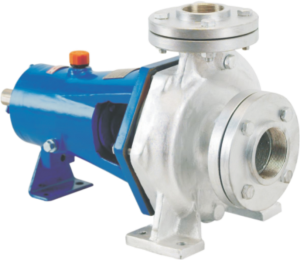

JCP Series

CENTRIFUGAL PUMP WITH SEMI OPEN IMPELLER

End Suction, Horizontal, Centrifugal Coupled Pumps with Semi-Open Impeller

These pumps are ideal for liquids with slight impurities or non-aggressive wastewater. This specific range of horizontal centrifugal pumps flaunts of a highly efficient mechanism which is as good as closed impellers centrifugal pumps.

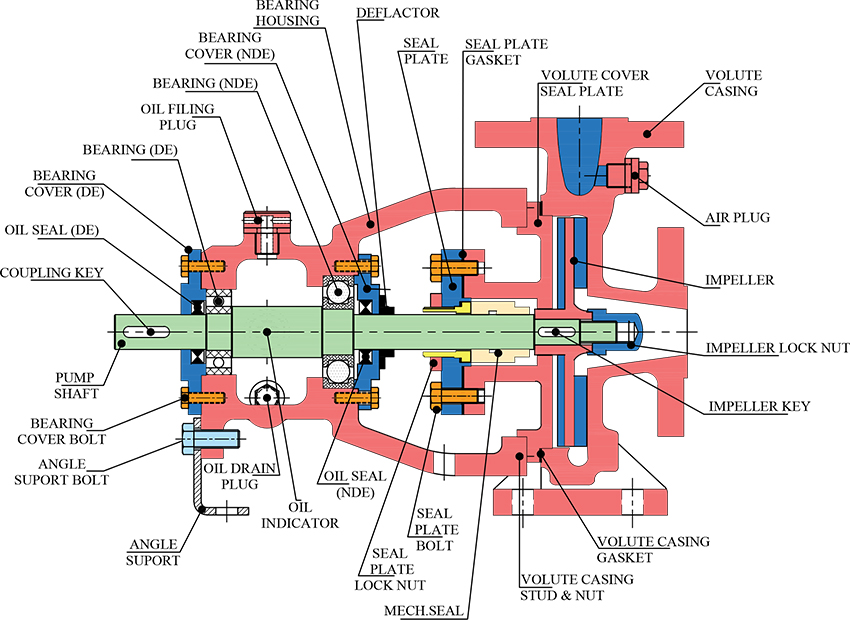

Pump Construction

Design

Self venting, top centerline discharge, no air locking, back pullouts, simplifies maintenance without disturbing pipe connections.

Impeller

A semi open impeller with non clogging technology which handles light slurries without a problem. Dynamic and balanced impeller, less noise, less vibration.

Stuffing Box

Provide with a gland packing or mechanical seal. (High quality mechanical rotary seal for leak proof long life operation) on request.

M.O.C.

C.I., C.S., SS-304/ 304 L, SS-316/316L, Bronze, Alloy-20, CD4MCU, etc…

Features

Smaller volume using less floor space.

Grease/Oil lubricant bearing

Temp. up to 120*C

Suitable wih V-Belt drive or direct coupled with a motor

Heavy duty shaft, sturdy construction, simple design, back pull out design.

Micro metric wears adjustable facility which works at constant head for a longer period.

Non-clogging and handles solids up to 10 mm.

Applications

Effluent treatment plants

Dyes and intermediate steel rolling mills

All types of industrial application

Filter press feeding

Slurry transfer

Ceramic, ETP & STP

Paper & Pulp

Sugar & food

Eva-operator and scrubber application

Effluent treatment plants	Dyes and intermediate steel rolling mills	All types of industrial application
Filter press feeding	Slurry transfer	Ceramic, ETP & STP
Paper & Pulp	Sugar & food	Eva-operator and scrubber application

Performance Chart

Operating Data

Capacity	Up to 40 m³/hr
Head	Up to 48 Mtr.
Discharge Size	25 mm to 50 mm.
Temperature	250°C
Speed	Up to 3500 rpm
Pressure	Up to 4.8 kg/cm2
M.O.C.	C.I,C.S.,SS-304/304L, SS316/316, Bronze, Alloy-20, CD4MCU Hast alloy B&C, etc.
