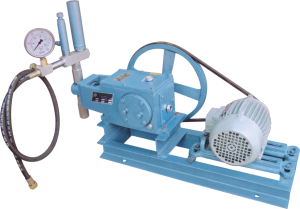

JTPM Series
Hydraulic test pumps create pressurized testing conditions for various industrial infrastructures. This diagnostic technique is used to perform high-pressure testing of tubes, pipes, cylinders and even pressure vessels like boilers. The objective is to check for any existing defects and test the vessel’s endurance. The JTPM Series Motorized Hydraulic Test Pumps can generate pressure up to 700 kg/cm2 and are widely used to test high-value pressure vessels. These pumps are built with strength and come loaded with various necessary pump auxiliaries needed for high-pressure testing.
Applications
Boilers & Pressure Vessels
Our JTPM Series Motorized Hydraulic Test Pumps are extensively used in boilers, furnaces and other high-pressure vessels. Therefore, delivering the right amount of flow for the liquid to test these pressure vessels is essential.
Pressure Testing
Gas cylinders, pipelines, tubes, and other components used in high-pressure applications must be tested for leakages and endurance. For this, our JTPM Series Motorized Hydraulic Test Pumps are used.
CI Mains & Casting
Another application of our JTPM Series Motorized Hydraulic Test Pumps is in CI mains and casting, where it is needed to push through high-pressure liquids to get accurate casting.
Features
Pump Construction
| Capacity | Up to 150 LPH |
| Discharge Size | 1/2" BSP |
| Plunger Size | 12 mm to 24 mm |
| Pressure | Up to 700 kg/cm2 |
| KW / HP | Up to 3.7/5 |
