Introduction
In the HVAC industry, industrial pumps play a crucial role in ensuring efficient and reliable operation of heating, ventilation, and air conditioning systems. These pumps are responsible for circulating water and other fluids through the system, providing the necessary energy to maintain optimal performance. From circulator pumps to end suction, split case, and vertical in-line pumps, there are various types of industrial pumps used in HVAC applications.
In this article, we will see the different types of industrial pumps commonly used in the HVAC industry, their selection considerations, and the importance of a systems approach in optimizing performance. We will also delve into the benefits of using variable frequency drives (VFDs) to enhance energy efficiency in pump operation.
Types of Industrial Pumps in HVAC Systems
Circulator Pumps: Enhancing Efficiency in Low-Pressure Systems
Circulator pumps are widely used in low-pressure, low-capacity HVAC systems. These pumps are designed to circulate water within a closed loop, ensuring efficient heat transfer and consistent system performance. In residential and small commercial hydronic heating systems, circulator pumps are often close-coupled to eliminate the need for a mechanical seal. This design minimizes maintenance requirements and ensures reliable operation.
In larger systems, high-flow circulator pumps are typically used. These pumps are designed as vertical in-line pumps with mechanical seals, allowing for easy integration into the piping system. By efficiently circulating water at different speeds based on system demand, circulator pumps can significantly reduce energy consumption and operating costs.

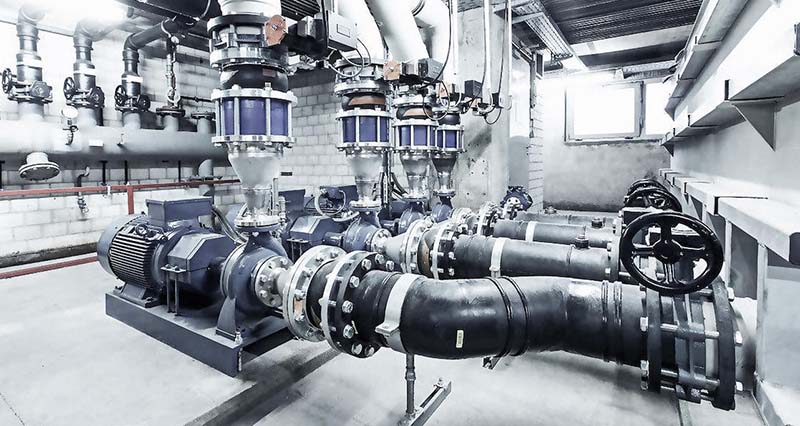

End Suction Pumps: Versatile Solutions for HVAC Applications
End suction pumps are another commonly used type of industrial pump in the HVAC industry. These pumps have a casing with the suction on one end and the discharge at the top, making them versatile and easy to install. End suction pumps can be either close-coupled or flexible-coupled, depending on the specific application requirements.
Close-coupled end suction pumps offer the advantage of compactness, taking up less floor space. The impeller is directly mounted to the motor shaft, ensuring efficient power transfer and minimizing alignment issues. On the other hand, flexible-coupled end suction pumps provide flexibility during maintenance, as the impeller and motor shaft are separated by a flexible coupling. However, proper reassembly is crucial to avoid misalignment and potential performance issues.
Split Case Pumps: Reliable Performance for High-Flow Systems
Split case pumps are widely used in HVAC applications that require high flow rates and reliable performance. These pumps are flexible-coupled and mounted on a baseplate, ensuring stability and ease of maintenance. Split case pumps can be either single suction or double suction, with the latter being preferred to reduce the risk of hydraulic imbalance.
Horizontal split case pumps are the most commonly used in HVAC applications. They feature a horizontally split casing, with the suction and discharge connections located in the lower half. This design allows for efficient power transfer and supports high flow rates. With capacities of up to 6,500 gallons per minute and 600 feet of head, split case pumps are ideal for large-scale HVAC systems.
Vertical In-Line Pumps: Space-Efficient Solutions for HVAC Systems
Vertical in-line pumps offer a space-efficient solution for HVAC applications that require moderate to high flow rates. These pumps are typically close-coupled, with the pump and motor directly mounted on the pump casing. Vertical in-line pumps can be either single or double suction, providing flexibility in system design.
These pumps are commonly mounted and supported by the piping system, minimizing the site footprint. For larger capacity systems, the pump assembly may have a base for floor mounting, with inertia bases installed to reduce vibration. With capacities of up to 25,000 gallons per minute and 300 feet of head, vertical in-line pumps are well-suited for a wide range of HVAC applications.
Selection Considerations for Industrial Pumps in HVAC Systems
When selecting an industrial pump for HVAC applications, several factors should be taken into consideration to ensure optimal performance, energy efficiency, and longevity. Let’s explore some of the key factors that influence pump selection in the HVAC industry:
Building HVAC Load: Matching Pump Capacity to System Requirements
The first step in pump selection for HVAC systems is understanding the building’s HVAC load. Factors such as the size of the space, the desired temperature ranges, and the heat transfer requirements. By accurately assessing the HVAC load, engineers can determine the appropriate capacity and head requirements for the pump.
Flow Rate: Meeting System Demand with Efficient Pump Operation
Flow rate is a critical parameter in pump selection. It represents the volume of fluid that needs to be circulated within the HVAC system. Matching the pump’s flow rate to the system’s demand is essential for efficient operation. Oversized pumps can lead to excessive energy consumption and decreased system efficiency, while undersized pumps may struggle to meet the required flow rate.
Pressure Losses: Accounting for System Resistance
Pressure losses within the HVAC system should be carefully considered during pump selection. These losses are caused by factors such as pipe length, fittings, valves, and equipment coils. By accounting for pressure losses, engineers can ensure that the selected pump is capable of overcoming system resistance and maintaining optimal flow rates and pressure levels.
Best Efficiency Point (BEP): Optimizing Pump Performance
Selecting a pump that operates close to its BEP ensures energy-efficient performance and reduces operating costs. It’s important to consider the pump’s performance curve and match it to the system’s duty point to achieve optimal efficiency.
Total Lifecycle Cost: Balancing Initial Investment and Long-Term Savings
Pump selection should not only focus on upfront costs but also consider the total lifecycle cost. This includes factors such as energy consumption, maintenance requirements, and the pump’s expected lifespan. By considering the long-term cost implications, engineers can make informed decisions that balance initial investment and ongoing operating expenses.
Special Electric Controls: Harnessing the Power of Variable Frequency Drives (VFDs)
Variable frequency drives (VFDs) offer a powerful tool for enhancing energy efficiency in pump operation. By adjusting the motor’s speed based on system demand, VFDs allow pumps to operate at varying speeds, matching the required flow rates and reducing energy consumption. When selecting an industrial pump for HVAC systems, considering the compatibility with VFDs can further optimize energy efficiency and overall system performance.
The Systems Approach: Optimizing Performance and Efficiency
In the HVAC industry, adopting a systems approach is crucial for optimizing the performance and efficiency of industrial pumps. Instead of focusing solely on individual pump components, considering the entire system as a whole allows for a comprehensive evaluation of factors that impact performance.
By taking into account the HVAC load, flow rates, pressure losses, and other system-specific requirements, engineers can select the most suitable pump for the application. Furthermore, integrating energy-efficient technologies such as VFDs and ensuring proper maintenance and operation practices can maximize the performance of the HVAC system as a whole.
Conclusion
Industrial pumps are important in the HVAC industry, ensuring efficient and reliable operation of heating, ventilation, and air conditioning systems. From circulator pumps to end suction, split case, and vertical in-line pumps, there are various types of pumps used in HVAC applications. By carefully considering factors such as building HVAC load, flow rates, and pressure losses, and adopting a systems approach, engineers can select the most suitable pump for optimal performance and energy efficiency.
Furthermore, the integration of variable frequency drives (VFDs) can further enhance energy efficiency by allowing pumps to operate at varying speeds based on system demand. With a focus on total lifecycle cost and long-term savings, pump selection in the HVAC industry should prioritize efficiency, reliability, and overall system performance.
